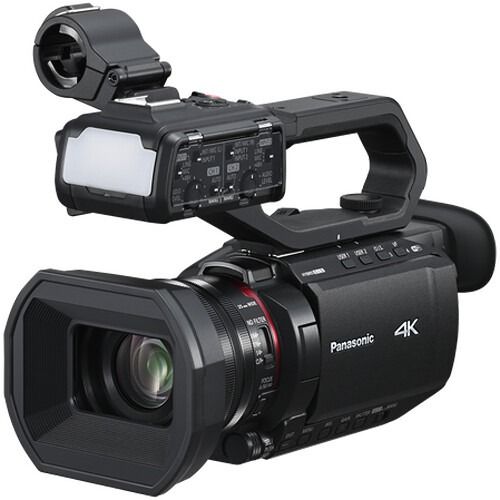

Easily capture and stream your production with the next-generation CX20 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity from Panasonic. The CX20 is a professional auto-tracking camcorder with numerous features, including dual XLR inputs, wired and Wi-Fi IP streaming and control capability, dual SD card slots, a 24x optical zoom lens with up to 48x digital HD zoom, image stabilization, and high-resolution 4K video capture.
High-Sensitivity MOS Sensor and Venus Engine
Wide-Angle 25mm Lens with 24x Optical Zoom
4K High-Precision Autofocus
Face Detection and Tracking AE/AF
5-Axis Hybrid Stabilization and O.I.S.
Built-In ND Filter
The built-in ND filter (1/4, 1/16, 1/64, Clear) adjusts incoming light levels to suit the shooting environment. The filter can be used to prevent resolution loss caused by excessive aperture reduction (diffraction) and supports a wide aperture for sharp images with a shallow depth of field.

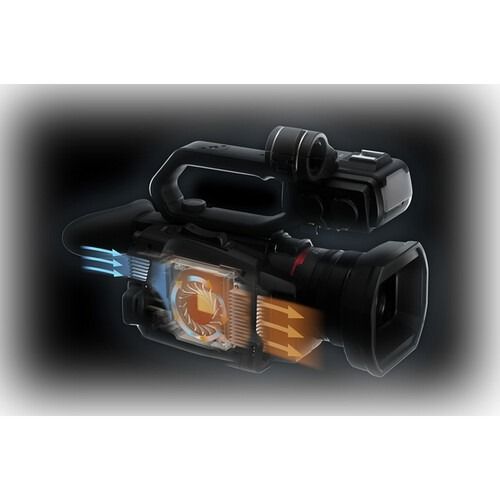

Efficient Heat Dissipation
Recording Features
Using the highly efficient new HEVC codec, the camcorder supports high bit rate recording.
Internal recording on SD cards supports 4:2:2 10-bit LongGOP UHD 4K29.97/25 (150 Mb/s) and 1080p59.94/50 (100 Mb/s). Enabling 10-bit recording activates 4K60 4:2:2 10-bit HDMI output, which is ideal for capturing high-quality video from external recorders.
The camcorder uses compact SD cards with two available slots. For 4K recording, it enables relay and backup recording. For 1080p recording, slot 1 records specific scenes while slot 2 records continuously.
Other recording features include pre-recording, interval recording, and embedded timestamps.
Proxy and Multi-Format Support
The camcorder supports a variety of formats and bit rates, including MOV and MP4 for streamlined editing workflows, as well as 720p AVCHD 8 Mb/s (PM mode). Proxy recording is possible with the AVC-Proxy G6 codec.
Super Slow Motion and IR Modes
Color and Effects Features
- 16-axis color correction
- Enhanced skin tones
- Edge enhancement
- Flexible gamma
- Customizable scenes/presets: Standard, Fluorescent Lighting, Spark, Still-like, Cinema-like with contrast, and Cinema-like with dynamic range
Additional Shooting Assistance
- Flash band compensation (FBC)
- Shockless auto white balance
- Customizable matrix tables, including CINE-LIKE mode
- V-detail and detail coring
- Chroma level/phase, color temperature, and master pedestal controls
- Knee point configuration
Outputs
The camera features a 3G-SDI output for up to 1080p60 video output over distances up to 328' for switchers or recorders, and there is an HDMI output that supports up to 4K60 4:2:2 video for recorders or displays.
Network and Control Features
- Built-in 5/2.4 GHz Wi-Fi module
- Wireless control via mobile Android/iOS devices
- Wired REMOTE support via 2.5mm mini jack for focus, zoom, and record start/stop
- 1080p streaming and recording via SRT, RTSP/RTP, RTMP or RTMPS
- NDI|HX2 support compatible with the Panasonic AV-UHS500 live switcher
- Ethernet LAN connection for streaming output and control
Physical Features
PCM Audio Recording
Built-In 70 Lux LED Light
-
Power: DC 7.2 V (when the battery is used), DC 12 V (when the AC adaptor is used)
-
Power consumption: TBD
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Operating Humidity: 10 % to 80 % (no condensation)
-
Weight (body only, excluding lens hood, battery, and accessories): Approx. 6.0 lbs. (2.7 kg)
-
Dimensions (excluding protrusion)(HxWxD): 7-1/8" x 8-1/2" x 14-23/32" (181 x 216 x 374mm)
-
Pickup Device: 4/3-type MOS
-
Effective Pixels: 1549 megapixel (FHD), 871 megapixel (UHD/59.94p), 1289 megapixel (UHD/29.97p), 1335 megapixel (4K/24p)
-
Lens: Optical image stabilizer lens, motorized/manual mode switching, 13x zoom F2.8 to F4.5 (f=12.8mm to 167 mm) 35 mm conversion 28.0 mm to 365.3 mm (FHD)
-
Filter Diameter: 72mm
-
ND Filter: OFF, 1/4, 1/16, 1/64
-
Shortest Shooting Distance: Approx. 1.0 m from the front lens
-
Gain Setting: L/M/H selector switch 0 dB to 24 dB (in 1 dB steps) (When assigning [S.GAIN] to the USER button Switching between 30 dB and 36 dB)
-
Color Temperature Setting:
-
When [SYSTEM MODE] = 59.94 Hz
- 60i/60p mode 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250., 1/350., 1/500 sec., 1/750 sec., 1/1000 sec.,1/1500 sec.,1/2000 sec.,1/3000 sec., 1/4000 sec.,1/8000 sec.
- 30p mode 1/30 sec.,1/50 sec.,1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec.,1/4000 sec., 1/8000 sec.
- 24p mode 1/24 sec., 1/48 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/120 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
-
When [SYSTEM MODE] = 50 Hz
- 50i/50p mode 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
- 25p mode 1/25 sec., 1/50 sec., 1/60 sec., 1/100 sec., 1/125 sec., 1/180 sec., 1/250 sec., 1/350 sec., 1/500 sec., 1/750 sec., 1/1000 sec., 1/1500 sec., 1/2000 sec., 1/3000 sec., 1/4000 sec., 1/8000 sec.
-
-
Slow Shutter Speed:
-
When [SYSTEM MODE] = 59.94 Hz
- 60i/60p mode 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec., 1/30 sec.
- 30p mode 1/2 sec., 1/4 sec., 1/8 sec., 1/15 sec.
- 24p mode 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
-
When [SYSTEM MODE] = 50 Hz
- 50i/50p mode 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec., 1/25 sec.
- 25p mode 1/2 sec., 1/3 sec., 1/6 sec., 1/12 sec.
-
-
Synchro Scan Shutter:
-
When [SYSTEM MODE] = 59.94 Hz
- 60i/60p mode 1/60.0 sec. to 1/249.8 sec.
- 30p mode 1/30.0 sec. to 1/249.8 sec.
- 24p mode 1/24.0 sec. to 1/249.6 sec.
-
When [SYSTEM MODE] = 50 Hz
- 50i/50p mode 1/50.0 sec. to 1/250.0 sec.
- 25p mode 1/25.0 sec. to 1/250.0sec.
-
-
Shutter Open Angle: 5.0° to 180.0° to 360.0° (in 0.5° steps, angle display)
-
VFR Recording Frame Rate:
-
When [SYSTEM MODE] = 59.94 Hz
- 60p mode 2, 15, 30, 40, 55, 58, 60, 62, 65, 75, 90, and 120 (frames per second)
- 30p mode 2, 15, 26, 28, 30, 32, 34, 45, 60, 75, 90, and 120 (frames per second)
- 24p mode 2, 12, 18, 20, 22, 24, 26, 28, 30, 36, 48, 60, 72, 84, 96, and 120 (frames per second)
-
When [SYSTEM MODE] = 50 Hz
- 50p mode 2, 12, 25, 33, 45, 48, 50, 52, 55, 62, 75, 100, and 120 (frames per second)
- 25p mode 2, 12, 21, 23, 25, 27, 30, 37, 50, 62, 75, 100, and 120 (frames per second)
-
-
Minimum Subject Illumination: 0.2 lx (F2.8, gain 18dB, [1/2S.] Manuals low shutter, [HIGH SENS.] mode)
-
Horizontal Resolution: 1000 TV or higher (center)
-
Digital Zoom: x2/x5/x10
-
Lens Hood: Hood with lens cover
-
Recording Media: SDHC memory card (4 GB to 32 GB), SDHX memory card (48GB to 128 GB), UHS-I supported
*When recording video images at 100 Mbps or higher, an SD memory card compatible with UHS Speed Class 3 (U3) is required. -
Recording Slot: Slot ×2
-
System Format: 59.94 Hz (NTSC) / 50 Hz(PAL)
-
Video Recording Format:
- Recording Format MOV, MP4, AVCHD
-
Recording Mode: *Please see the video Recording Format table attached in images
-
Still Picture Recording Format:
-
JPEG (DCF/Exif2.2) supported
-
8.8M 4096 x 2160 (179), 8.3M 3840 x 2160 (169), 2.1M 1920 x 1080 (169), 0.9M 1280 x 720 (169), 0.2M 640 x 360 (169), 0.3M 640 x 480(43)
-
-
External Output Video Signal: 8-bit 422/10 bit 422 (switchable menu)
*HDMI output of UHD/59.94p/50.00p becomes 8-bit/420. Also, when 10-bit/422 is selected, recording is not possible with the main unit. -
Recording Video Signal: 8-bit/420
-
Video Compression Format (Digital Video): MPEG-4AVC/H.264 High Profile (MOV/MP4/AVCHD)
-
Recording Audio Signal: 48 kHz/16 bit, 2 CH
-
Audio Compression Format (Digital Audio): LPCM (MOV/MP4) Dolby Digital (AVCHD)
-
Headroom: 12 dB/18 dB/20 dB (switchable menu)
-
File Format: MOV, MP4
-
Video Compression Format (Dual Codec): MPEG-4AVC/H.264 High Profile
-
Audio Compression Format (Dual Codec): LPCM
-
Recording Format:
-
When [Dual Codec] = FHD 50 Mbps
- [Main Recording Side]
- Recording mode = MOV/MP4
- UHD/29.97p/25.00p/23.98p 100 Mbps
-
[Sub Recording Side]
- Recording mode = Same as the recording mode of the Main Recording Side
-
FHD/29.97p/25.00p/23.98p 50Mbps
- When [Dual Codec] = FHD 8Mbps
- FHD/59.94p/50.00p/29.97p/25.00p/23.98p 200 Mbps
- FHD/59.94p/50.00p 100 Mbps
- Recording mode = MOV
- FHD/59.94p/50.00p/29.97p/25.00p/23.98p 8 Mbps
-
SDI OUT (Video Input/Output):
- BNC ×1, 0.8 V [p-p], 75 Ohm, 3 G/1.5 G HD-SDI, SD-SDI supported
- Output format 1080/59.94p LEVEL-A/50.00p LEVEL-A, 1080/29.97PsF/25.00PsF/24.00PsF/23.98PsF, 1080/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94i, 576/50.00i
-
VIDEO OUT: BNC × 1, Composite 1.0 V [p-p], 75 Ohm
-
HDMI OUT (Video Input/Output):
- HDMI × 1 (HDMI type A terminal, not compatible with VIERA Link)
-
Output format:
- 2160/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p, 1080/59.94p/50.00p/29.97p/25.00p/24.00p/23.98p/59.94i/50.00i, 720/59.94p/50.00p, 480/59.94p, 576/50.00p
-
Built-in Microphone: Supports stereo microphone
-
XLR IN:
- XLR (3 pin) × 2 (INPUT1, INPUT2)
- Input high impedance, LINE/MIC/MIC+48 V (switchable SW)
- LINE 4 dBu/0 dBu (switchable menu)
- MIC -40 dBu/ -50 dBu/ -60 dBu (menu)
-
SDI OUT (Audio Output): 2 CH (LPCM) switchable gain 0dB/-6 dB/-12 dB
-
HDMI OUT (Audio Output): 2CH (LPCM)
-
Audio OUT: 3.5 mm diameter stereo mini jack × 1, Output level 600 ohm, 316 mV
-
Headphone: 3.5 mm diameter stereo mini jack ×1
-
Speaker: 20 mm diameter, round × 1
-
CAM REMOTE:
- 2.5 mm diameter super mini jack ×1 (ZOOM, S/S)
- 3.5 mm diameter mini jack ×1 (FOCUS, IRIS)
-
TC PRESET IN/OUT:
- BNC × 1, Used as the input and output terminals, IN/OUT switch selection
- Input 1.0 V to 4.0 V [p-p], 10 k Ohm
- Output 2.0 V ±0.5 V [p-p], low impedance
-
USB 3.0 HOST:
- Standard-A connector, 9-pin
- USB hard disk connected function, Bus power supply
*A USB hard disk of 32 GB or less, or exceeding 2TB, cannot be used.
- USB 3.0 DEVICE: Micro-B connector, 10-pin (Mass storage function (read only))
-
DC IN 12 V: DC 12 V (11.4 V to 12.6 V), EIAJ type 4
-
LCD Monitor: 4.3 type HD color monitor (Approx. 2760000 dots)
-
Viewfinder:
- 0.39 type OLED (organic EL display)
(Approx. 2360000 dots, video display area Approx. 1770000 dots)
- 0.39 type OLED (organic EL display)
-
- Panasonic CX20 Professional Compact 4K Camcorder with XLR Inputs & IP Connectivity
- Panasonic 7.28V 43Wh Lithium-Ion Battery for DVX200 and CX10 (5900mAh)
- Panasonic Battery Charger for AG-VBR & Other Batteries
- Top Handle Unit
- Lens Hood
- Eye Cup
- Microphone Holder
- Microphone Holder Screw Set
- Brand New Factory Fresh Import Model
